New 12V DC 2A 5A 8.5A 10A 12.5A 15A 20A 30A Regulated Switching Power Supply



Update time : 2014-03-30 13:38:19

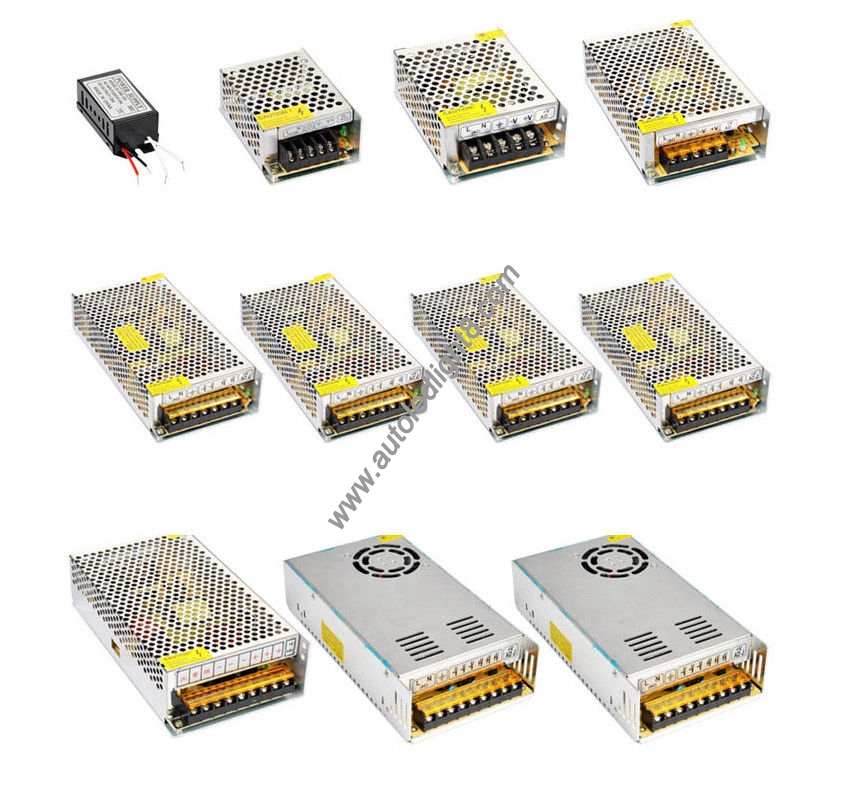

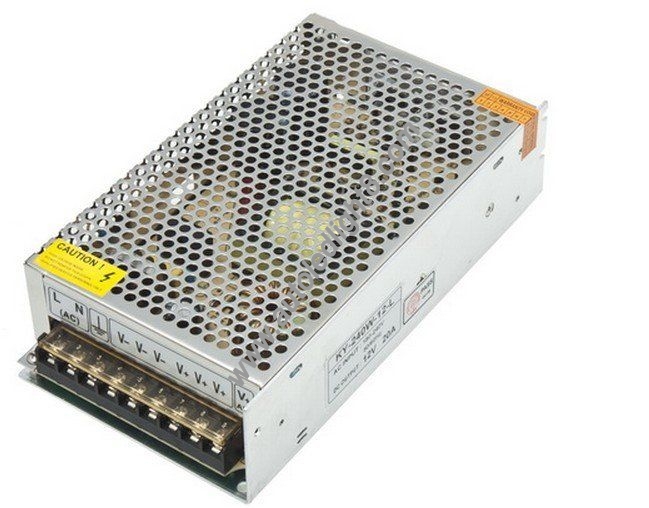

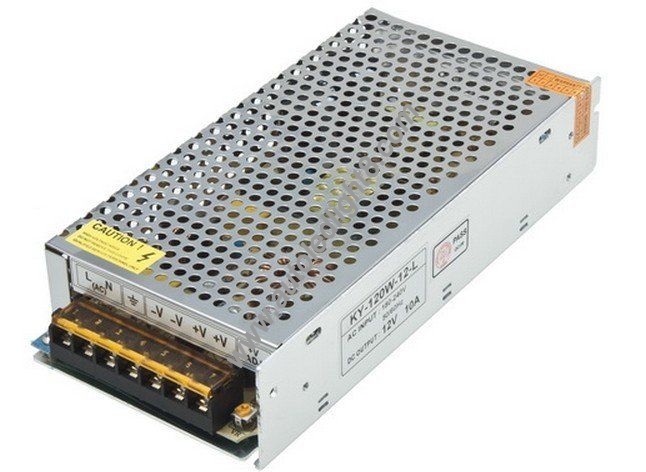

New 12V DC 2A 5A 8.5A 10A 12.5A 15A 20A 30A Regulated Switching Power Supply

New 12V DC 2A 5A 8.5A 10A 12.5A 15A 20A 30A Regulated Switching Power Supply

New 12V DC 2A 5A 8.5A 10A 12.5A 15A 20A 30A Regulated Switching Power Supply



Specification:

1.   Input: 90~130V OR 170-250V
2.   Out put: 12V 2A/3.2A/5A/8.5A/10A/12.5A/15A/20A/30A
3.  The output direct voltage adjustable range: ±10%
4.  The output voltage tolerance: ±1%
5.  Protections: overload / over voltage / short circuit
6.  Material: Metal
7.  Color: Silver
8.  Dimension:
     2A:(L*W*H)86*58*38mm
     5A:(L*W*H)110*78*36mm
     8.5A:(L*W*H)160*98*42mm
    10A:(L*W*H)200*98*42mm
    12.5A:(L*W*H)200*98*42mm
    15A:(L*W*H)200*98*42mm
    20A:(L*W*H)198*110*50mm
    30A:(L*W*H)215*113*50mm

9.Power available:24W/38W/60W100W/150W/180W/200W/250W/300W/320W/350W/400W/500W/600W

10. Nonwaterproof / waterproof power supply available



Connection:
    L, N: AC power input
    GND: DC power output "-"
    V: DC power output "+"
    +V / ADJ: Adjust the output voltage
Features:
    Universal AC input / full range
    Full load burn-in test
    It's good quality and high performance
    Great switching power supply for home appliances

Special Note:
   This Power Supply Unit "DOES NOT" come with installation instruction, wiring cable,
   on/off switch, or screws. Professional
   Installation of qualified electrician is highly recommended.
