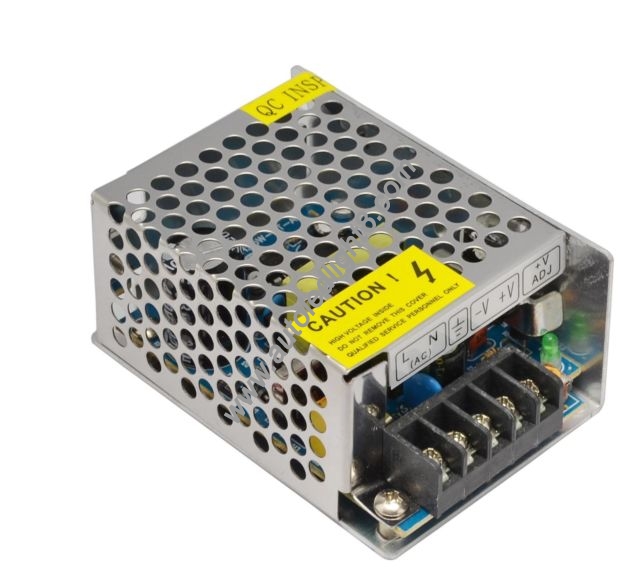

AC 100-240V to DC 12V 5A adapter charger Power Supply Adapter for Led Strips Lights



Update time : 2014-03-30 13:34:44

AC 100-240V to DC 12V 5A adapter charger Power Supply Adapter for Led Strips Lights

AC 100-240V to DC 12V 5A adapter charger Power Supply Adapter for Led Strips Lights

Specification:

1.   Input: 90~130V OR 170-250V
2.   Out put: 12V 2A/3.2A/5A/8.5A/10A/12.5A/15A/20A/30A
3.  The output direct voltage adjustable range: ±10%
4.  The output voltage tolerance: ±1%
5.  Protections: overload / over voltage / short circuit
6.  Material: Metal
7.  Color: Silver
8.  Dimension:
     2A:(L*W*H)86*58*38mm
     5A:(L*W*H)110*78*36mm
     8.5A:(L*W*H)160*98*42mm
    10A:(L*W*H)200*98*42mm
    12.5A:(L*W*H)200*98*42mm
    15A:(L*W*H)200*98*42mm
    20A:(L*W*H)198*110*50mm
    30A:(L*W*H)215*113*50mm

9.Power available:24W/38W/60W100W/150W/180W/200W/250W/300W/320W/350W/400W/500W/600W

10. Nonwaterproof / waterproof power supply available

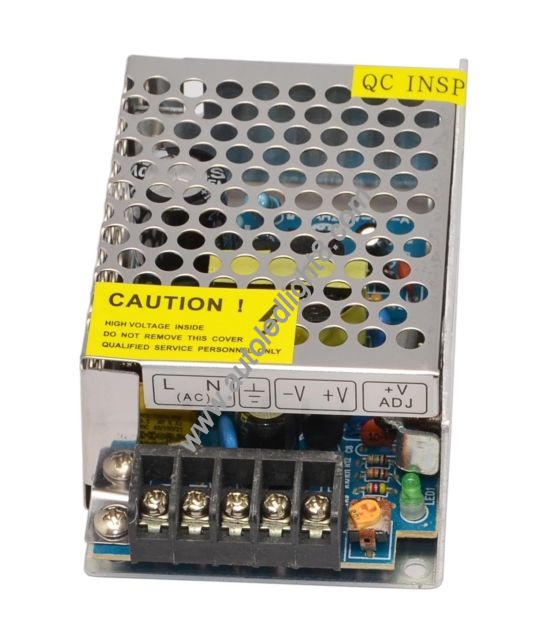

Connection:
    L, N: AC power input
    GND: DC power output "-"
    V: DC power output "+"
    +V / ADJ: Adjust the output voltage
Features:
    Universal AC input / full range
    Full load burn-in test
    It's good quality and high performance
    Great switching power supply for home appliances

Special Note:
   This Power Supply Unit "DOES NOT" come with installation instruction, wiring cable,
   on/off switch, or screws. Professional
   Installation of qualified electrician is highly recommended.
