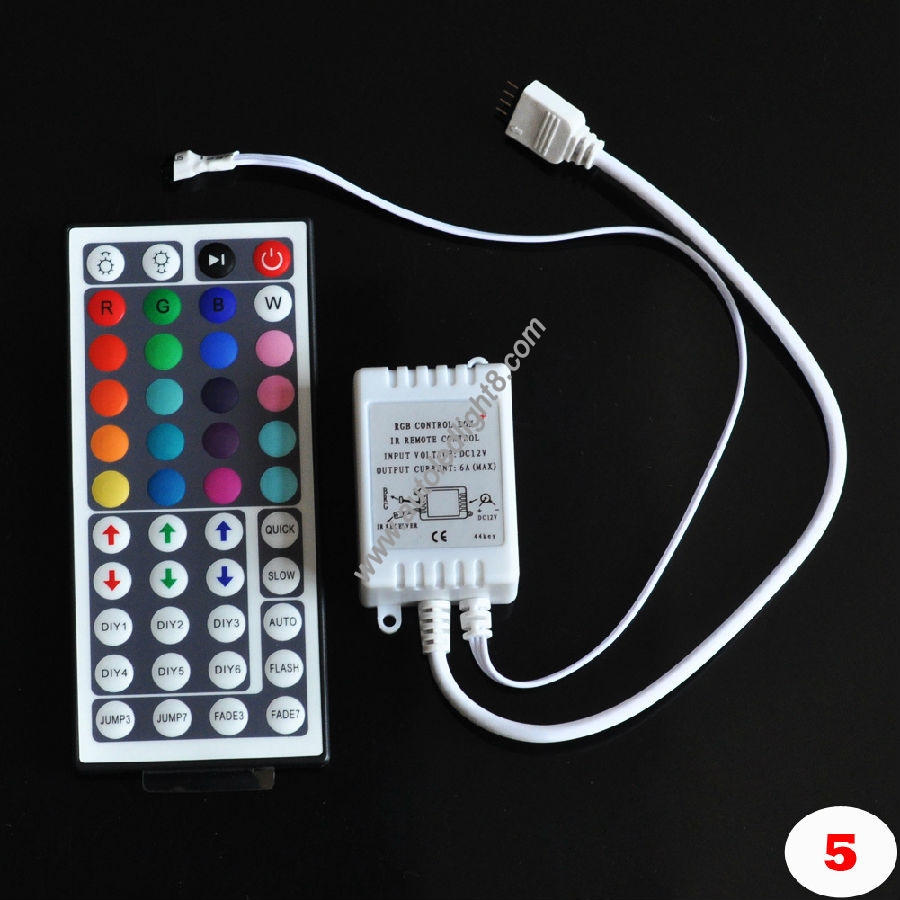

DC 12V 44 keys IR Remote Controller For 3528 5050 RGB LED Strip Light

Description:

• Type:44Key Remote Controller

• Connection mode: Common Anode(+)

• Input Voltage: DC12V

• Max load current: 6A, 2A each color

• Output: three CMOS drain-open output

• Working Temperature: -20°C-60°C

• Mode & Pattern:
  16 colors, 5 light pattern: Static/Flash/Strobe/Fade-change/RGB  Smooth-change
  16-classes Static Mode Dim Control
  16-Speeds Control in Flash / Strobe / Fade-change / RGB  Smooth-change

• Control box dimension: 50mm x 36mm x 22mm ± 0.2mm

• Remote controller dimension: 123mm x 54mm x 8mm ± 0.2mm

• Remote controller battery: 1 x CR2025 (Included)

• Control range: 250px - 25000px RGB LED Strips

• Support 10 meters SMD 5050 30LEDs/M LED Strips or 5 meters SMD  5050 60LEDs / M LED Strips

Package:

• 1 X IR Controller

• 1 X Remote

• 1 X User Manual
