9 Inch 108W Quad Row LED Light Bar
Update time : 2014-04-02 15:01:23
Item Specification
1. Power: 108W
2. Voltage: 9-32V
3. Theoretical Lumens Output: 10800 LM
4. Operating Lumens Output: 6150 LM
5. LED: 36pcs*3W(Cree LED)

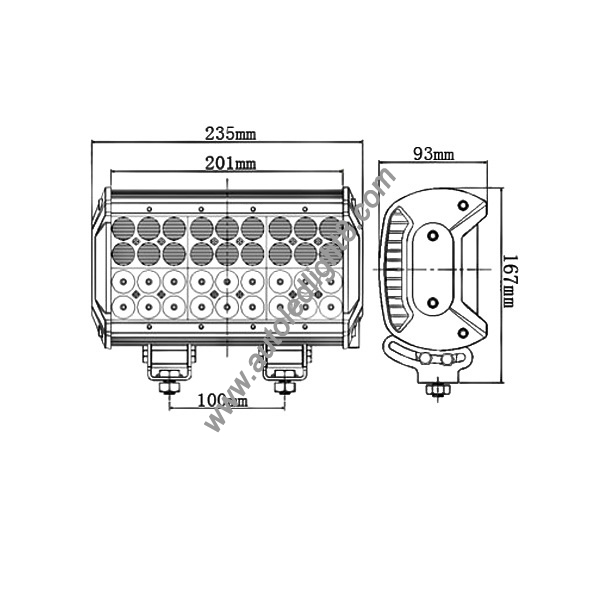

6. Size: 235*167*93mm
7. Beam: Combi beam,Pencil beam,Flood beam
8. LED color temperature: 5000K, 6500K
9. Working life: 50000 hours
10. Working temperature: -40~ 85℃
11. Waterproof rate: IP67,
Feature:
1. The Combo beam offers Flood style illumination and the Spots provide more dense, further reaching light.
2. The 4 inch quad row LED light bar is a popular solution for Heavy equipment and Utility appication.
3. 6063 aluminum profile, stainless steel bracket, PC Lens
4. Designed To Withstand Any Condition, 6063 Aluminum Body For Strength And Durability.
5. LED Light Bar Low Current Draw means no harms to battery and save gas.

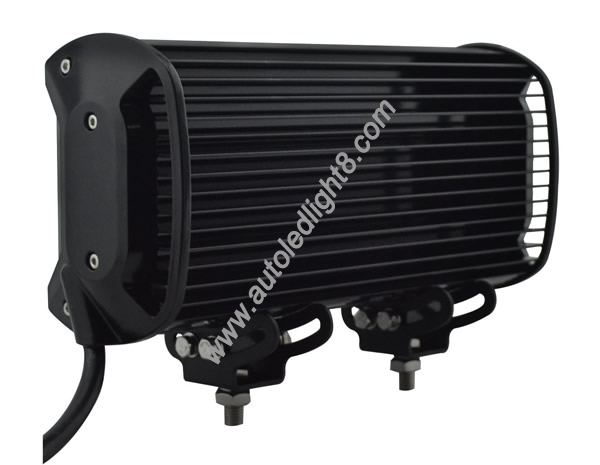

6. Extruded oversized heatsink. LED's produce heat, managing this heat will ensure long life of the CREE LED chips and ensure consistent performance for over 50,000 hours ensuring they go the distance.
7. Waterproof and anti-corrosion: LED light bars can be used in the rain or harsh environments.
8. Wide operating voltage range: it can apply to different types of trucks, Off-road vehicles, 4x4, Military, Mining, Boating, Farming, Heavy Equipment etc.
9. The light output of these LED light bar is simply phenomenal, they produce a mass of clean white daylight (5000k), free of artifacts
4ROWS LED Light Bar other size Available:
Quad Row LED Light Bar | |||||
Item No. | Size | LED’s | Power( W ) | Voltage | Lumens |
SM-4R-36W | 4 (99mm) | 12 | 36 | 9-32V | 2520 |
SM-4R-72W | 7 (167mm) | 24 | 72 | 5040 | |
SM-4R-108W | 9 (235mm) | 36 | 108 | 6150 | |
SM-4R-144W | 12 (305mm) | 48 | 144 | 10080 | |
SM-4R-180W | 15 (368mm) | 60 | 180 | 13000 | |
SM-4R-216W | 17 (440mm) | 72 | 216 | 15500 |
